New Horizons

New Horizons

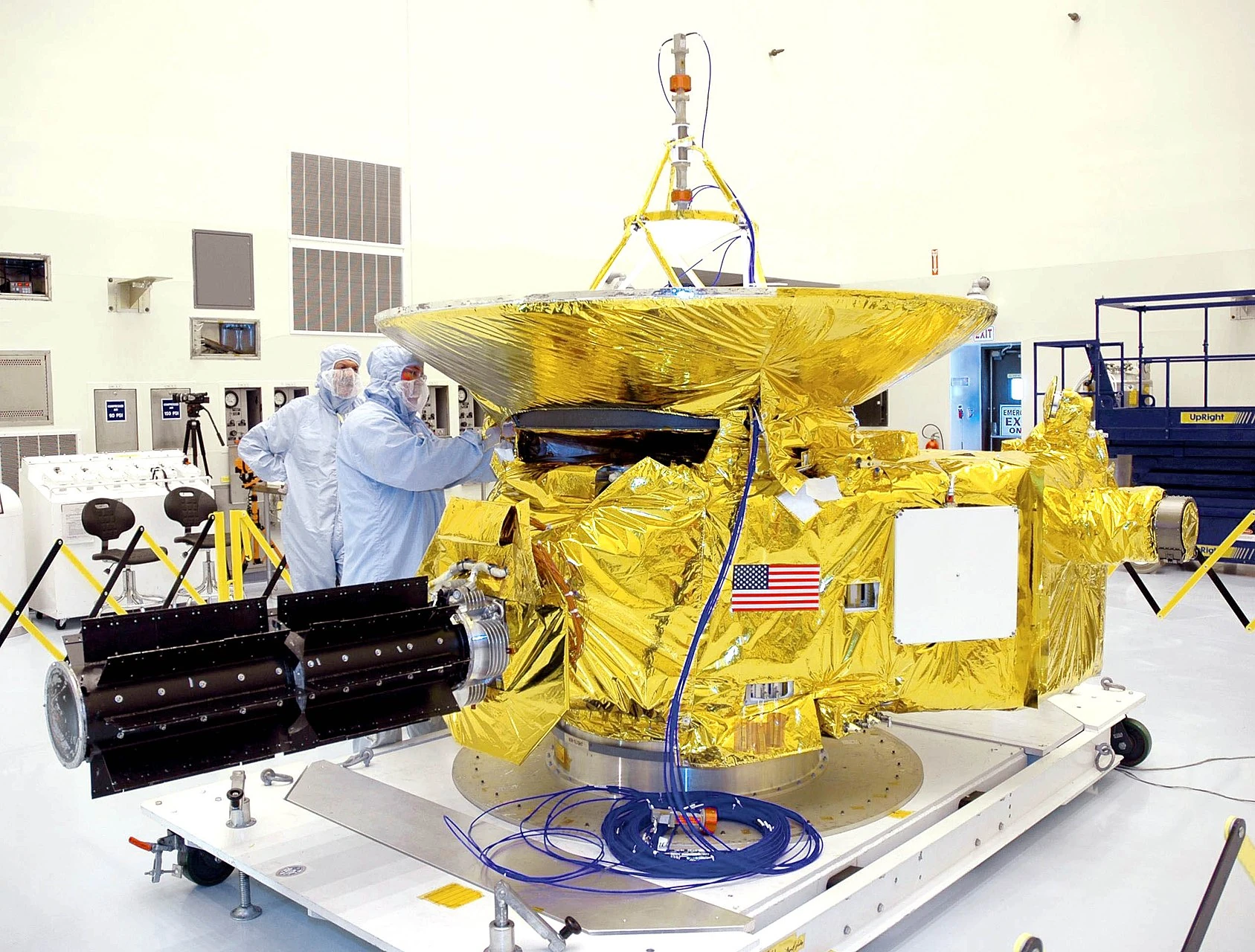

New Horizons in a facory at Kennedy Space Center in 2005

New Horizons is an interplanetary space probe that was launched as a part of NASA's New Frontiers program. Engineered by the Johns Hopkins University Applied Physics Laboratory (APL) and the Southwest Research Institute (SwRI), with a team led by Alan Stern, the spacecraft was launched in 2006 with the primary mission to perform a flyby study of the Pluto system in 2015, and a secondary mission to fly by and study one or more other Kuiper belt objects (KBOs) in the decade to follow, which became a mission to 486958 Arrokoth. It is the fifth space probe to achieve the escape velocity needed to leave the Solar System. It is the first spacecraft to fly by and study Pluto and its moons,Charon,Nix,Hydra,Kerberos and attempt flybys of one or more other Kuiper belt Objects if a suitable target can be located.

Design and comstruction

Spacecraft subsystems

The spacecraft is comparable in size and general shape to a grand piano and has been compared to a piano glued to a cocktail bar-sized satellite dish. As a point of departure, the team took inspiration from the Ulysses spacecraft, which also carried a radioisotope thermoelectric generator (RTG) and dish on a box-in-box structure through the outer Solar System. Many subsystems and components have flight heritage from APL's CONTOUR spacecraft, which in turn had heritage from APL's TIMED spacecraft.

New Horizons' body forms a triangle, almost 0.76 m (2.5 ft) thick. (The Pioneers have hexagonal bodies, whereas the Voyagers, Galileo, and Cassini–Huygens have decagonal, hollow bodies.) A 7075 aluminium alloy tube forms the main structural column, between the launch vehicle adapter ring at the "rear", and the 2.1 m (6 ft 11 in) radio dish antenna affixed to the "front" flat side. The titanium fuel tank is in this tube. The RTG attaches with a 4-sided titanium mount resembling a gray pyramid or stepstool.
